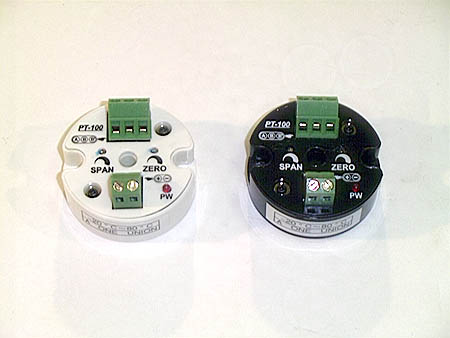

Temperature Transmitter
RTD APPLICATION 4-20mA CURRENT LOOP OUTPUT SINGAL
FULLY RANGE TEMPERATURE MEASUREMENT


  • 9-36 VDC POWERED
  • FULL RANGE: -200oC~+600oC
  • CURRENT PROPORTIONAL LED BRIGHTNESS
  • FACTORY CALIBRATION REPORT OPTIONAL
  • USER ADJUSTABLE ZERO / SPAN ±10%
  • OTHER RANGE AVAILABLE UPON REQUEST


Specifications

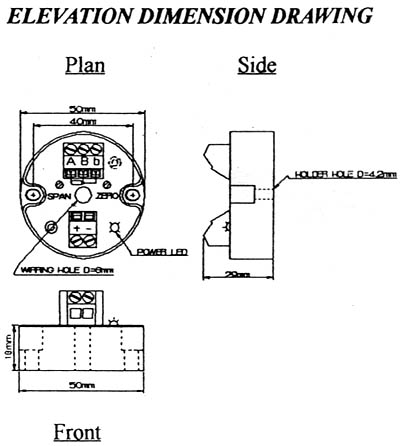

RTD type factory pre-set.  Temperature range is user adjustable via 20 turn trimmers for zero and span (±10%).  Input: RTD as indicated on nameplate.  Output singal: 4~20mA.  Output accuracy: Sensor output (RTD ±.1%).  Supply voltage required: 9v-36 VDC.  Output current limit: 30mA. Sensor burnout detection: Upscale > 23mA.  Case: Black bakelite, 1.97 diameter X 1.14 Hight (50 x 29mm)  Pilot: LED, brightness proportional to output.

Ambient range: -40 to +85oC
Span Drift: 0.025% 0oC
Zero Drift: .01% span 0.5uA/oC
Supply voltage effect+: .5uV/V
Weight: 30g

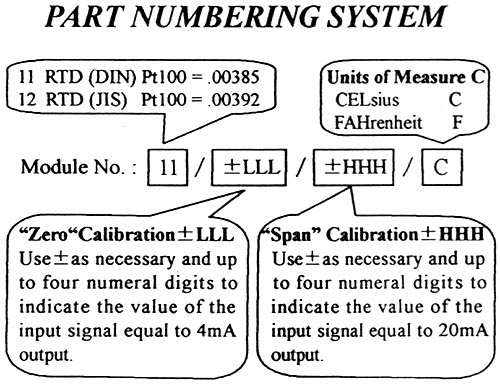

User Adjustable Temperature Span / Zero (±10%)(oC) for 20 mA Output
RTD: -200oC ~+600oC  (-392oF ~ + 1112oF)




*** STOCK ***
-50 ~ 80oC, -20 ~ 80oC, 0 ~ 50oCc, 0 ~ 100oC, 0 ~ 400oC, 0 ~ 500oC, 0 ~ 600oC
(Other temp. range is available.)
